cl_syoscb_compare Class Reference

Component which instantiates the chosen comparison algorithm. More...

Inherits uvm_component, and uvm_component.

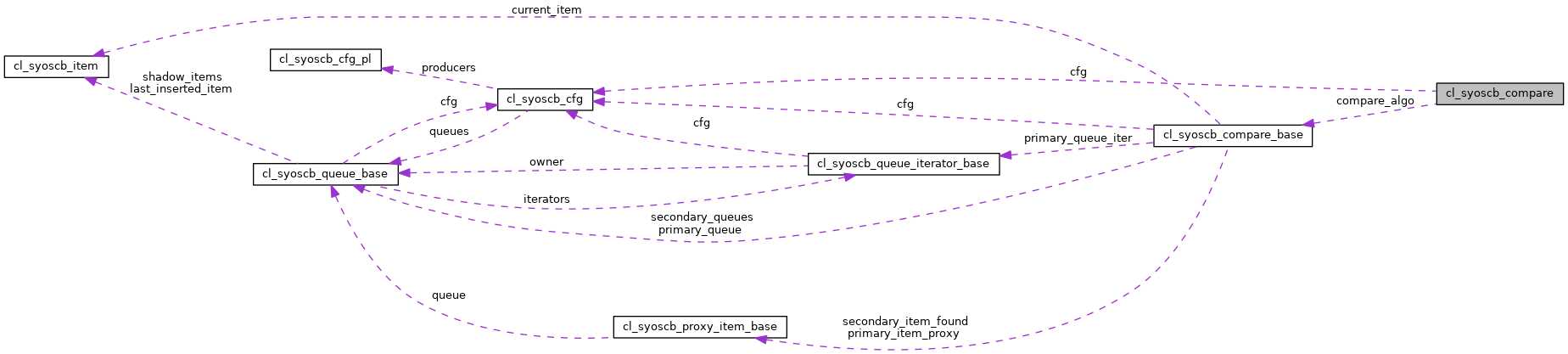

Collaboration diagram for cl_syoscb_compare:

Public Member Functions
void	build_phase (uvm_phase phase)
	UVM build phase: Gets the scoreboard's configuration and creates the comparison algorithm.
void	extract_phase (uvm_phase phase)
	UVM extract phase: Check if cl_syoscb_cfg::end_greediness is greedy. More...
virtual void	compare_trigger (string queue_name="", cl_syoscb_item item=null)
	Compare API: Starts a comparison by invoking the chosen compare strategy if comparisons are not disabled More...
virtual void	compare_control (bit cc)
	Compare API: Toggle comparisons on or off More...

Private Attributes
cl_syoscb_cfg	cfg
	Handle to the configuration.
cl_syoscb_compare_base	compare_algo
	Handle to the actual compare algorithm to be used.

Detailed Description

Component which instantiates the chosen comparison algorithm.

Serves to wrap the compare algorithm in a UVM component, as well as triggering additional comparisons at the end of the run phase if the greed level prescribes this.

Definition at line 4 of file cl_syoscb_compare.svh.

Member Function Documentation

compare_control()

void cl_syoscb_compare::compare_control ( bit  cc )

virtual

Compare API: Toggle comparisons on or off

Parameters

cc	compare control bit. If 1, comparisons are enabled, if 0, comparisons are disabled

Definition at line 71 of file cl_syoscb_compare.svh.

References compare_algo, and cl_syoscb_compare_base::compare_control().

Referenced by cl_syoscb::compare_control().

compare_trigger()

void cl_syoscb_compare::compare_trigger ( string  queue_name = "", cl_syoscb_item  item = null  )

virtual

Compare API: Starts a comparison by invoking the chosen compare strategy if comparisons are not disabled

Parameters

queue_name	Name of the queue which had an item inserted into it
item	The scoreboard wrapper item that was inserted into the SCB

Definition at line 65 of file cl_syoscb_compare.svh.

References compare_algo, and cl_syoscb_compare_base::compare_trigger().

Referenced by cl_syoscb::compare_trigger().

extract_phase()

void cl_syoscb_compare::extract_phase

(

uvm_phase

phase

)

UVM extract phase: Check if cl_syoscb_cfg::end_greediness is greedy.

If yes, we want to drain all the remaining matches from the scb before moving to check_phase

Definition at line 56 of file cl_syoscb_compare.svh.

References cfg, compare_algo, cl_syoscb_compare_base::compare_main(), and cl_syoscb_cfg::get_end_greediness().

---

The documentation for this class was generated from the following files:

• cl_syoscb_compare.svh
• pk_syoscb.sv
