Class which represents the base concept of a queue. More...

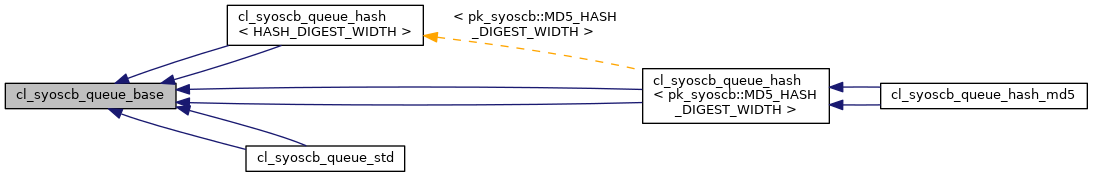

Inheritance diagram for cl_syoscb_queue_base:

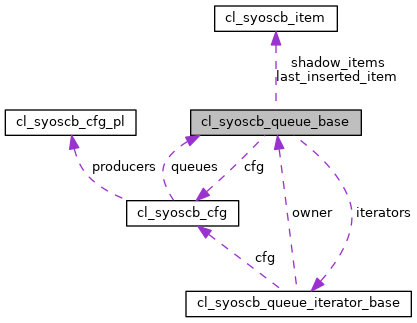

Collaboration diagram for cl_syoscb_queue_base:

Public Member Functions
void	build_phase (uvm_phase phase)
	UVM Build Phase. Gets the scoreboard configuration for this SCB.

void	check_phase (uvm_phase phase)
	UVM check phase. More...

virtual bit	add_item (string producer, uvm_sequence_item item)
	Queue API: Adds a uvm_sequence_item to this queue. More...

virtual bit	delete_item (cl_syoscb_proxy_item_base proxy_item)
	Queue API: Deletes the item indicated by the proxy item from the queue. More...

virtual void	dump (uvm_printer printer=null, int fd=UVM_STDOUT)
	Queue API: Loop over all the items in the shadow queue and dump them. More...

virtual cl_syoscb_item	get_item (cl_syoscb_proxy_item_base proxy_item)
	Queue API: Gets the item pointed to by the proxy item from the queue. More...

virtual int unsigned	get_size ()
	Queue API: Returns the current size of the queue. More...

virtual bit	empty ()
	Queue API: Returns whether or not the queue is empty. More...

virtual bit	insert_item (string producer, uvm_sequence_item item, int unsigned idx)
	Queue API: Inserts a uvm_sequence_item at index idx. More...

virtual void	flush_queue ()
	Queue API: Deletes all elements from the queue. More...

virtual cl_syoscb_queue_iterator_base	create_iterator (string name="")
	Queue API: Creates an iterator for this queue. More...

virtual cl_syoscb_queue_iterator_base	get_iterator (string name)
	Queue API: Gets the iterator from this queue with a given name. More...

virtual bit	delete_iterator (cl_syoscb_queue_iterator_base iterator)
	Queue API: Deletes an iterator from this queue. More...

virtual cl_syoscb_queue_locator_base	get_locator ()
	Queue API: Creates a locator for this queue. More...

virtual bit	exists_cnt_producer (string producer)
	Queue API: Check if a given producer exists in the producer counter for this queue More...

virtual int unsigned	get_cnt_producer (string producer)
	Queue API: Get the producer count for a given producer. More...

virtual int unsigned	get_cnt_add_item ()
	Queue API: Returns the number of items that have been inserted in this queue

virtual int unsigned	get_max_items ()
	Queue API: Returns the maximum number of elements that have been in the queue.

virtual int unsigned	get_cnt_flushed_item ()
	Queue API: Returns the total number of elements flushed from this queue.

virtual int unsigned	get_cnt_matched_item ()
	Queue API: Returns the total number of elements matched in this queue

virtual cl_syoscb_item	get_last_inserted_item ()
	Queue API: Gets the last inserted item in the queue

virtual string	get_failed_checks ()
	Queue API: Gets a string containing all queue checks that this queue have failed. More...

virtual string	create_queue_report (int unsigned offset, int unsigned first_column_width)
	Queue API: Returns a string with overall queues statistics. More...

Public Attributes
cl_syoscb_item	shadow_items [$]
	Shadow queue tracking all items inserted into the queue, used for scoreboard dumps.

Protected Member Functions
virtual cl_syoscb_item	pre_add_item (string producer, uvm_sequence_item item)
	Perform some basic bookkeeping that is the same for all sequence items before insertion. More...

virtual void	post_add_item (cl_syoscb_item item)
	Perform some basic bookkeping that is the same for all sequence items after insertion. More...

virtual void	do_flush_queue ()
	Performs the actual element deletion from the queue when called by flush_queue.

virtual void	incr_cnt_producer (string producer)
	Increment the producer counter for a given producer. More...

virtual void	decr_cnt_producer (string producer)
	Decrement the producer counter for a given producer. More...

virtual void	dump_orphans_to_file ()
	Dumps orphans remaining in the queue into a logfile. More...

virtual void	dump_orphans_to_stdout ()
	Prints orphans remaining in the queue to stdout. More...

virtual string	create_producer_stats (int unsigned offset, int unsigned first_column_width)
	Returns a table with statistics for all producers in this queue. More...

virtual string	get_dump_extension (t_dump_type dump_type)
	Gets the file extension to be used for a dump file. More...

virtual void	print_orphan_xml_header (int fd)
	Prints the header for an XML orphan dump. More...

virtual void	print_orphan_xml_footer (int fd)
	Prints the footer for an XML orphan dump. More...

Protected Attributes
cl_syoscb_cfg	cfg
	Handle to the configuration.

cl_syoscb_queue_iterator_base	iterators [cl_syoscb_queue_iterator_base]
	List of iterators registered with this queue.

semaphore	iter_sem
	Semaphore guarding exclusive access to the queue when multiple iterators are in play.

int unsigned	cnt_producer [string]
	Associative array counting the number of items by a given producer that currently exist in the queue.

int unsigned	cnt_add_item = 0
	Number of items that have been inserted into this queue.

int unsigned	max_items = 0
	Maximum number of items that have been in this queue so far.

cl_syoscb_item	last_inserted_item
	The most recently inserted item in this queue.

int	num_iters_created = 0
	The number of iterators that have been created for this queue so far.

Private Attributes
int unsigned	nbr_items_dumped
	Number of items that have been dumped from this queue when performing a scoreboard dump.

int unsigned	total_cnt_producer [string]
	Associative array counting the total number of items by a given producer that have been inserted in the queue.

int unsigned	total_cnt_flushed_producer [string]
	Associative array counter the total number of items by a given producer that have been flused form the queue.

string	failed_checks [string]
	AA for storing queue debug checks during the UVM check phase. More...

Detailed Description

Class which represents the base concept of a queue.

All queues must extend this class and implement the queue API.

Definition at line 3 of file cl_syoscb_queue_base.svh.

Member Function Documentation

◆ add_item()

bit cl_syoscb_queue_base::add_item	(	string	producer,
		uvm_sequence_item	item
	)

virtual

Queue API: Adds a uvm_sequence_item to this queue.

The basic job of the add_item method is:

Create the new cl_syoscb_item and give it a unique name
Set the producer and other metadata of the scoreboard item
Wrap the uvm_sequence_item inside the scoreboard item
Insert the item into the queue and shadow queue
Update the producer counter and insert counter
Parameters

producer The producer of the sequence item

item The item that should be add to the queue

Returns
1 if the item was successfully added, 0 otherwise

Note
Abstract method. Must be implemented in a subclass

Reimplemented in cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_std, and cl_syoscb_queue_std.

Definition at line 186 of file cl_syoscb_queue_base.svh.

Referenced by cl_syoscb::add_item().

◆ check_phase()

void cl_syoscb_queue_base::check_phase ( uvm_phase phase )

UVM check phase.

Checks if the queue is empty and if it had zero insertions. If either is true, a UVM_ERROR is generated in cl_syoscb

Definition at line 150 of file cl_syoscb_queue_base.svh.

References cfg, dump_orphans_to_file(), dump_orphans_to_stdout(), empty(), failed_checks, cl_syoscb_cfg::get_dump_orphans_to_files(), cl_syoscb_cfg::get_enable_no_insert_check(), cl_syoscb_cfg::get_max_print_orphans(), and get_size().

◆ create_iterator()

cl_syoscb_queue_iterator_base cl_syoscb_queue_base::create_iterator ( string name = "" )

virtual

Queue API: Creates an iterator for this queue.

Iterators are by default named "[name]_iter[X]", where [name] is the name of the queue, and [X] is the number of iterators that have previusly been created for this queue

Parameters

name	A name to be used for the iterator. If an iterator with this name already exists, prints a UVM_DEBUG message

Returns: An iterator over this queue, or null if a queue with the requested name already exists

Reimplemented in cl_syoscb_queue_std, cl_syoscb_queue_std, cl_syoscb_queue_hash_md5, and cl_syoscb_queue_hash_md5.

Definition at line 320 of file cl_syoscb_queue_base.svh.

Referenced by cl_scb_test_iterator_unit_tests::check_first(), cl_scb_test_iterator_unit_tests::check_flush(), cl_scb_test_iterator_unit_tests::check_last(), cl_scb_test_iterator_unit_tests::check_names(), cl_scb_test_iterator_unit_tests::check_next(), cl_scb_test_iterator_unit_tests::check_prev(), cl_scb_test_iterator_unit_tests::check_set_queue(), cl_syoscb_compare_base::create_primary_iterator(), dump_orphans_to_file(), dump_orphans_to_stdout(), cl_syoscb_compare_ooo::get_count_producer(), cl_syoscb_compare_iop::get_count_producer(), cl_syoscb_compare_io_2hp::primary_loop_do(), cl_syoscb_compare_io::secondary_loop_do(), and cl_syoscb_compare_iop::secondary_loop_do().

◆ create_producer_stats()

string cl_syoscb_queue_base::create_producer_stats	(	int unsigned	offset,
		int unsigned	first_column_width
	)

protectedvirtual

Returns a table with statistics for all producers in this queue.

Outputs the number of insertions, matches, flushed items and orphans per-producer.

Parameters

offset	The x-offset that should be used when printing producer names
first_column_width	The width of the first column in the table

Returns: A string containing producer stats for all producers in this queue.

Definition at line 597 of file cl_syoscb_queue_base.svh.

References cfg, cnt_producer, cl_syoscb_cfg::get_producers(), cl_syoscb_string_library::pad_str(), total_cnt_flushed_producer, and total_cnt_producer.

Referenced by create_queue_report().

◆ create_queue_report()

string cl_syoscb_queue_base::create_queue_report	(	int unsigned	offset,
		int unsigned	first_column_width
	)

virtual

Queue API: Returns a string with overall queues statistics.

Reports the number of insertions, matches, flushed items and orphans. If cl_syoscb_cfg::enable_queue_stats is 1, also includes per-producer statistics (see create_producer_stats)

Parameters

offset	The x-offset that should be used when printing the queue name names
first_column_width	The width of the first column in the table

Returns: A string containing overall queues statistics.

Definition at line 638 of file cl_syoscb_queue_base.svh.

References cfg, create_producer_stats(), get_cnt_add_item(), get_cnt_flushed_item(), get_cnt_matched_item(), cl_syoscb_cfg::get_enable_queue_stats(), get_size(), and cl_syoscb_string_library::pad_str().

Referenced by cl_syoscb::create_queues_stats(), and cl_syoscb::intermediate_queue_stat_dump().

◆ decr_cnt_producer()

void cl_syoscb_queue_base::decr_cnt_producer ( string producer )

protectedvirtual

Decrement the producer counter for a given producer.

Parameters

producer The producer to decrement the counter for

Definition at line 380 of file cl_syoscb_queue_base.svh.

References cnt_producer.

Referenced by cl_syoscb_queue_std::delete_item(), and cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >::delete_item().

◆ delete_item()

bit cl_syoscb_queue_base::delete_item ( cl_syoscb_proxy_item_base proxy_item )

virtual

Queue API: Deletes the item indicated by the proxy item from the queue.

The basic job of the delete_item method is:

Delete the element
Notify any iterators, moving them as necessary
Update the producer counter for the deleted item's producer
Parameters

proxy_item A proxy item indicating which scoreboard item to delete from the queue

Returns
if the item was successfully deleted, 0 otherwise

Note
Abstract method. Must be implemented in a subclass

Reimplemented in cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_std, and cl_syoscb_queue_std.

Definition at line 200 of file cl_syoscb_queue_base.svh.

Referenced by cl_syoscb_compare_base::delete().

◆ delete_iterator()

bit cl_syoscb_queue_base::delete_iterator ( cl_syoscb_queue_iterator_base iterator )

virtual

Queue API: Deletes an iterator from this queue.

Parameters

iterator The iterator to delete

Returns: 1 if the iterator was successfully deleted, 0 otherwise

Reimplemented in cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_std, and cl_syoscb_queue_std.

Definition at line 345 of file cl_syoscb_queue_base.svh.

Referenced by cl_scb_test_iterator_unit_tests::check_first(), cl_scb_test_iterator_unit_tests::check_flush(), cl_scb_test_iterator_unit_tests::check_last(), cl_scb_test_iterator_unit_tests::check_names(), cl_scb_test_iterator_unit_tests::check_next(), cl_scb_test_iterator_unit_tests::check_prev(), cl_scb_test_iterator_unit_tests::check_set_queue(), dump_orphans_to_file(), and dump_orphans_to_stdout().

◆ dump()

void cl_syoscb_queue_base::dump	(	uvm_printer	printer = `null`,
		int	fd = `UVM_STDOUT`
	)

virtual

Queue API: Loop over all the items in the shadow queue and dump them.

If a printer has not been passed in the arguments, used cl_syoscb_cfg::get_printer to lookup a printer for each shadow item (which may be quite inefficient). If cl_syoscb_cfg::full_scb_type has been set to XML, the XML printer is used, overriding any specific printers that have been set

Parameters

printer	The printer to use when dumping items. Defaults to null, getting a queue/producer specific printer for each item
fd	File descriptor for where to dump items. Defaults to STDOUT

Definition at line 438 of file cl_syoscb_queue_base.svh.

References cfg, cl_syoscb_item::convert2string(), cl_syoscb_cfg::get_default_printer(), cl_syoscb_cfg::get_enable_c2s_full_scb_dump(), cl_syoscb_cfg::get_full_scb_dump(), cl_syoscb_cfg::get_full_scb_dump_type(), cl_syoscb_cfg::get_printer(), cl_syoscb_item::get_producer(), nbr_items_dumped, cl_syoscb_printer_config::set_file_descriptor(), cl_syoscb_item::set_queue_index(), and shadow_items.

Referenced by cl_syoscb::dump_join_txt(), cl_syoscb::dump_join_xml(), cl_syoscb::dump_split_txt(), and cl_syoscb::dump_split_xml().

◆ dump_orphans_to_file()

void cl_syoscb_queue_base::dump_orphans_to_file ( )

protectedvirtual

Dumps orphans remaining in the queue into a logfile.

Assumes that the caller has checked whether cl_syoscb_cfg::dump_orphans_to_files is set

Definition at line 521 of file cl_syoscb_queue_base.svh.

References cfg, create_iterator(), delete_iterator(), cl_syoscb_queue_iterator_base::first(), cl_syoscb_cfg::get_default_printer(), get_dump_extension(), cl_syoscb_proxy_item_base::get_item(), cl_syoscb_cfg::get_max_print_orphans(), cl_syoscb_cfg::get_orphan_dump_file_name(), cl_syoscb_cfg::get_orphan_dump_type(), cl_syoscb_cfg::get_printer(), cl_syoscb_item::get_producer(), cl_syoscb_cfg::get_scb_name(), cl_syoscb_queue_iterator_base::has_next(), cl_syoscb_queue_iterator_base::next(), cl_syoscb_queue_iterator_base::next_index(), cl_syoscb_queue_iterator_base::previous_index(), print_orphan_xml_footer(), print_orphan_xml_header(), cl_syoscb_printer_config::set_file_descriptor(), and cl_syoscb_item::set_queue_index().

Referenced by check_phase().

◆ dump_orphans_to_stdout()

void cl_syoscb_queue_base::dump_orphans_to_stdout ( )

protectedvirtual

Prints orphans remaining in the queue to stdout.

The number of orphans that are printed depends on cl_syoscb_cfg::max_print_orphans

Definition at line 484 of file cl_syoscb_queue_base.svh.

References cfg, create_iterator(), delete_iterator(), cl_syoscb_queue_iterator_base::first(), cl_syoscb_proxy_item_base::get_item(), cl_syoscb_cfg::get_max_print_orphans(), cl_syoscb_cfg::get_orphans_as_errors(), cl_syoscb_queue_iterator_base::has_next(), cl_syoscb_queue_iterator_base::next(), cl_syoscb_queue_iterator_base::next_index(), cl_syoscb_queue_iterator_base::previous_index(), and cl_syoscb_item::set_queue_index().

Referenced by check_phase().

◆ empty()

bit cl_syoscb_queue_base::empty ( )

virtual

Queue API: Returns whether or not the queue is empty.

Returns: 1 if the queue is empty, 0 otherwise

Note: Abstract method. Must be implemented in a subclass

Reimplemented in cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_std, and cl_syoscb_queue_std.

Definition at line 266 of file cl_syoscb_queue_base.svh.

Referenced by check_phase(), cl_syoscb_compare_base::check_queues(), and cl_syoscb::empty_queues().

◆ exists_cnt_producer()

bit cl_syoscb_queue_base::exists_cnt_producer ( string producer )

virtual

Queue API: Check if a given producer exists in the producer counter for this queue

Parameters

producer The producer to check for existence 1 if the producer exists, 0 otherwise

Definition at line 395 of file cl_syoscb_queue_base.svh.

References cnt_producer.

Referenced by cl_syoscb_compare_base::count_producers().

◆ flush_queue()

void cl_syoscb_queue_base::flush_queue ( )

virtual

Queue API: Deletes all elements from the queue.

Updates the flush counter, sets all producer counts to 0 and resets all iterators.

Definition at line 288 of file cl_syoscb_queue_base.svh.

References cfg, cnt_producer, do_flush_queue(), cl_syoscb_cfg::get_producers(), iter_sem, iterators, and total_cnt_flushed_producer.

Referenced by cl_syoscb::flush_queues().

◆ get_cnt_producer()

int unsigned cl_syoscb_queue_base::get_cnt_producer ( string producer )

virtual

Queue API: Get the producer count for a given producer.

Parameters

producer The producer to get count for

Returns: The number of items in the queue that were from the given producer

Note: May ONLY be called if the producer exists (see exists_cnt_producer)

Definition at line 403 of file cl_syoscb_queue_base.svh.

References cnt_producer.

Referenced by cl_syoscb_compare_base::count_producers().

◆ get_dump_extension()

string cl_syoscb_queue_base::get_dump_extension ( t_dump_type dump_type )

protectedvirtual

Gets the file extension to be used for a dump file.

Parameters

dump_type The type of dump that should be performed.

Returns: A string with the file extension that should be used for that kind of dump

Definition at line 659 of file cl_syoscb_queue_base.svh.

Referenced by dump_orphans_to_file().

◆ get_failed_checks()

string cl_syoscb_queue_base::get_failed_checks ( )

virtual

Queue API: Gets a string containing all queue checks that this queue have failed.

Failed checks include having orphans at the end of simulation, and not having any insertions

Returns: A string containing all failed checks for this queue

Definition at line 577 of file cl_syoscb_queue_base.svh.

References failed_checks.

Referenced by cl_syoscb::get_queue_failed_checks().

◆ get_item()

cl_syoscb_item cl_syoscb_queue_base::get_item ( cl_syoscb_proxy_item_base proxy_item )

virtual

Queue API: Gets the item pointed to by the proxy item from the queue.

If the proxy item does not specify a valid item in the queue, print a UVM_INFO/DEBUG message

Parameters

proxy_item A proxy item indicating which scoreboard item to delete from the queue

Returns: The scoreboard item indicated by the proxy item, null if the proxy item did not point to a valid item

Note: Abstract method. Must be implemented in a subclass

Reimplemented in cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_std, and cl_syoscb_queue_std.

Definition at line 248 of file cl_syoscb_queue_base.svh.

Referenced by cl_syoscb_compare_ooo::get_count_producer(), cl_syoscb_compare_iop::get_count_producer(), cl_syoscb_proxy_item_base::get_item(), cl_syoscb_compare_io::primary_loop_do(), cl_syoscb_compare_io_2hp::primary_loop_do(), cl_syoscb_compare_iop::primary_loop_do(), cl_syoscb_compare_io::secondary_loop_do(), and cl_syoscb_compare_iop::secondary_loop_do().

◆ get_iterator()

cl_syoscb_queue_iterator_base cl_syoscb_queue_base::get_iterator ( string name )

virtual

Queue API: Gets the iterator from this queue with a given name.

If no queue exists with that name, returns null

Parameters

name	The name of the queue to lookup

Returns: That iterator, if it exists, or null if no such queue exists

Note: Will raise a UVM_ERROR if multiple iterators with the same name exist

Definition at line 330 of file cl_syoscb_queue_base.svh.

References iterators.

Referenced by cl_syoscb_compare_base::create_primary_iterator(), cl_syoscb_compare_io_2hp::primary_loop_do(), cl_syoscb_compare_io::secondary_loop_do(), and cl_syoscb_compare_iop::secondary_loop_do().

◆ get_locator()

cl_syoscb_queue_locator_base cl_syoscb_queue_base::get_locator ( )

virtual

Queue API: Creates a locator for this queue.

Returns: A locator over this queue

Reimplemented in cl_syoscb_queue_std, cl_syoscb_queue_std, cl_syoscb_queue_hash_md5, and cl_syoscb_queue_hash_md5.

Definition at line 352 of file cl_syoscb_queue_base.svh.

Referenced by cl_syoscb_compare_ooo::secondary_loop_do().

◆ get_size()

int unsigned cl_syoscb_queue_base::get_size ( )

virtual

Queue API: Returns the current size of the queue.

Returns: Number of items currently in the queue

Note: Abstract method. Must be implemented in a subclass

Reimplemented in cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_std, and cl_syoscb_queue_std.

Definition at line 257 of file cl_syoscb_queue_base.svh.

Referenced by cl_syoscb::add_item(), cl_scb_test_iterator_unit_tests::check_last(), cl_scb_test_iterator_unit_tests::check_next(), check_phase(), create_queue_report(), cl_syoscb_compare_base::dynamic_queue_split_do(), cl_syoscb_queue_iterator_std::first(), get_cnt_matched_item(), cl_syoscb_compare_base::get_queues_item_cnt(), cl_syoscb::get_total_queue_size(), cl_syoscb_queue_iterator_std::has_next(), cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >::has_next(), cl_syoscb_queue_iterator_std::last(), and post_add_item().

◆ incr_cnt_producer()

void cl_syoscb_queue_base::incr_cnt_producer ( string producer )

protectedvirtual

Increment the producer counter for a given producer.

Parameters

producer The producer to increment the counter for

Definition at line 363 of file cl_syoscb_queue_base.svh.

References cnt_producer, total_cnt_flushed_producer, and total_cnt_producer.

Referenced by post_add_item().

◆ insert_item()

bit cl_syoscb_queue_base::insert_item	(	string	producer,
		uvm_sequence_item	item,
		int unsigned	idx
	)

virtual

Queue API: Inserts a uvm_sequence_item at index idx.

The method works in the same manner as add_item, by doing the following:

Insert the a new item as the add_item() method
Notify any iterators
Parameters

producer The producer of the sequence item

item The item that should be add to the queue

idx The index at which the item should be inserted

Returns
1 if the item was successfully inserted, 0 otherwise

Note
Abstract method. Must be implemented in a subclass

Reimplemented in cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_std, and cl_syoscb_queue_std.

Definition at line 281 of file cl_syoscb_queue_base.svh.

◆ post_add_item()

void cl_syoscb_queue_base::post_add_item ( cl_syoscb_item item )

protectedvirtual

Perform some basic bookkeping that is the same for all sequence items after insertion.

Parameters

item	The scoreboard item that has been inserted into the scoreboard

Definition at line 230 of file cl_syoscb_queue_base.svh.

References cfg, cnt_add_item, cl_syoscb_cfg::get_full_scb_dump(), cl_syoscb_item::get_producer(), get_size(), incr_cnt_producer(), last_inserted_item, max_items, and shadow_items.

Referenced by cl_syoscb_queue_std::add_item(), cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >::add_item(), cl_syoscb_queue_std::insert_item(), and cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >::insert_item().

◆ pre_add_item()

cl_syoscb_item cl_syoscb_queue_base::pre_add_item	(	string	producer,
		uvm_sequence_item	item
	)

protectedvirtual

Perform some basic bookkeeping that is the same for all sequence items before insertion.

Generates the scoreboard wrapper item

Parameters

producer	The producer of this item
item	The item to be inserted into the scoreboard

Returns: A scoreboard item, wrapping the given sequence item

Definition at line 210 of file cl_syoscb_queue_base.svh.

References cnt_add_item, cl_syoscb_item::set_insertion_index(), cl_syoscb_item::set_item(), and cl_syoscb_item::set_producer().

Referenced by cl_syoscb_queue_std::add_item(), cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >::add_item(), cl_syoscb_queue_std::insert_item(), and cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >::insert_item().

◆ print_orphan_xml_footer()

void cl_syoscb_queue_base::print_orphan_xml_footer ( int fd )

protectedvirtual

Prints the footer for an XML orphan dump.

Parameters

fd	File descriptor for the file to write the header into

Definition at line 688 of file cl_syoscb_queue_base.svh.

Referenced by dump_orphans_to_file().

◆ print_orphan_xml_header()

void cl_syoscb_queue_base::print_orphan_xml_header ( int fd )

protectedvirtual

Prints the header for an XML orphan dump.

Parameters

fd	File descriptor for the file to write the header into

Definition at line 672 of file cl_syoscb_queue_base.svh.

References cfg, and cl_syoscb_cfg::get_scb_name().

Referenced by dump_orphans_to_file().

Member Data Documentation

◆ failed_checks

string cl_syoscb_queue_base::failed_checks

private

AA for storing queue debug checks during the UVM check phase.

These values are used in cl_syoscb::report_phase and cl_syoscb::check_phase

Definition at line 46 of file cl_syoscb_queue_base.svh.

Referenced by check_phase(), and get_failed_checks().

The documentation for this class was generated from the following files:

producer	The producer of the sequence item
item	The item that should be add to the queue

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Member Function Documentation

◆ add_item()

◆ check_phase()

◆ create_iterator()

◆ create_producer_stats()

◆ create_queue_report()

◆ decr_cnt_producer()

◆ delete_item()

◆ delete_iterator()

◆ dump()

◆ dump_orphans_to_file()

◆ dump_orphans_to_stdout()

◆ empty()

◆ exists_cnt_producer()

◆ flush_queue()

◆ get_cnt_producer()

◆ get_dump_extension()

◆ get_failed_checks()

◆ get_item()

◆ get_iterator()

◆ get_locator()

◆ get_size()

◆ incr_cnt_producer()

◆ insert_item()

◆ post_add_item()

◆ pre_add_item()

◆ print_orphan_xml_footer()

◆ print_orphan_xml_header()

Member Data Documentation

◆ failed_checks
