Queue iterator base class defining the iterator API used for iterating over queues. More...

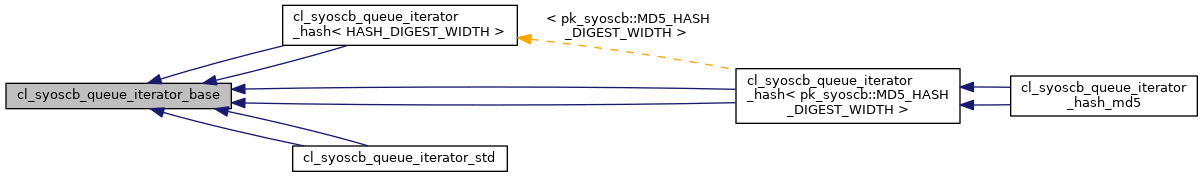

Inheritance diagram for cl_syoscb_queue_iterator_base:

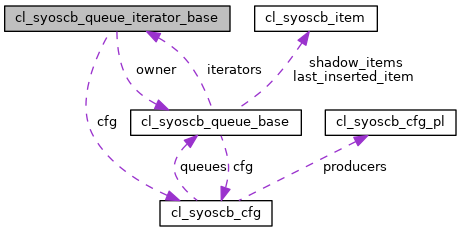

Collaboration diagram for cl_syoscb_queue_iterator_base:

Public Member Functions
virtual cl_syoscb_proxy_item_base	next ()
	Iterator API: Moves the iterator one step forward, returning the next item in the queue. More...

virtual bit	has_next ()
	Iterator API: Checks if there are more items in the queue in the forward direction More...

virtual int	next_index ()
	Iterator API: Returns the index of the item which would be returned if next() was called More...

virtual cl_syoscb_proxy_item_base	previous ()
	Iterator API: Moves the iterator one step backward, returning the previous item in the queue. More...

virtual bit	has_previous ()
	Iterator API: Checks if there are more items in the queue in the backward direction More...

virtual int	previous_index ()
	Iterator API: Returns the index of the item which would be returned if previous() was called More...

virtual bit	first ()
	Iterator API: Moves the iterator to the first item in the queue. More...

virtual bit	last ()
	Iterator API: Moves the iterator to the last item in the queue. More...

virtual bit	set_queue (cl_syoscb_queue_base owner)
	Iterator API: Sets the queue over which this iterator is iterating. More...

Protected Member Functions
virtual cl_syoscb_queue_base	get_queue ()
	Iterator API: Internal API: Returns the queue over which this iterator is iterating. More...

virtual cl_syoscb_proxy_item_base	get_item_proxy ()
	Iterator API: Internal API: Returns a proxy item that can be used to access the element that was just moved past by calling next or previous. More...

Protected Attributes
cl_syoscb_queue_base	owner
	The owner of this iterator.

int unsigned	position = 0
	Current position in the queue.

cl_syoscb_cfg	cfg
	Local handle to the SCB cfg.

Detailed Description

Queue iterator base class defining the iterator API used for iterating over queues.

The iterator API is modelled after the Java ListIterator interface https://docs.oracle.com/javase/8/docs/api/java/util/ListIterator.html. To iterate over all elements of a queue, use a while loop of the type

void'(iter.first());
while(iter.has_next()) begin
  cl_syoscb_proxy_item_base pib = iter.next();
  //do something
end

Internally, the iterator's position is always between elements. Calling next or previous will advance or reverse the iterator, returning the item that was moved past

items:              queue[0]   queue[1]   queue[2]   ...   queue[n-1]
cursor positions: ^          ^          ^          ^     ^            ^

Definition at line 17 of file cl_syoscb_queue_iterator_base.svh.

Member Function Documentation

◆ first()

bit cl_syoscb_queue_iterator_base::first ( )

virtual

Iterator API: Moves the iterator to the first item in the queue.

Calling has_previous at this point will always return 1'b0

Returns: 1 if successful, 0 if the queue is empty

Reimplemented in cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_std, and cl_syoscb_queue_iterator_std.

Definition at line 104 of file cl_syoscb_queue_iterator_base.svh.

Referenced by cl_scb_test_iterator_unit_tests::check_first(), cl_scb_test_iterator_unit_tests::check_flush(), cl_syoscb_compare_base::create_primary_iterator(), cl_syoscb_queue_base::dump_orphans_to_file(), cl_syoscb_queue_base::dump_orphans_to_stdout(), cl_syoscb_compare_ooo::get_count_producer(), cl_syoscb_compare_iop::get_count_producer(), cl_syoscb_compare_ooo::primary_loop_do(), cl_syoscb_compare_io_2hp::primary_loop_do(), cl_syoscb_compare_iop::primary_loop_do(), cl_syoscb_compare_io::secondary_loop_do(), and cl_syoscb_compare_iop::secondary_loop_do().

◆ get_item_proxy()

cl_syoscb_proxy_item_base cl_syoscb_queue_iterator_base::get_item_proxy ( )

protectedvirtual

Iterator API: Internal API: Returns a proxy item that can be used to access the element that was just moved past by calling next or previous.

Returns: A proxy item for the element that was moved past.

Reimplemented in cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_std, and cl_syoscb_queue_iterator_std.

Definition at line 143 of file cl_syoscb_queue_iterator_base.svh.

◆ get_queue()

cl_syoscb_queue_base cl_syoscb_queue_iterator_base::get_queue ( )

protectedvirtual

Iterator API: Internal API: Returns the queue over which this iterator is iterating.

Returns: A handle to the queue. Raises a UVM_FATAL if no queue is associated with the iterator.

Definition at line 119 of file cl_syoscb_queue_iterator_base.svh.

References owner.

◆ has_next()

bit cl_syoscb_queue_iterator_base::has_next ( )

virtual

Iterator API: Checks if there are more items in the queue in the forward direction

Returns: 1 if there are more items in the forward direction, 0 otherwise (either empty queue or past last item)

Reimplemented in cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_std, and cl_syoscb_queue_iterator_std.

Definition at line 69 of file cl_syoscb_queue_iterator_base.svh.

Referenced by cl_scb_test_iterator_unit_tests::check_flush(), cl_scb_test_iterator_unit_tests::check_next(), cl_scb_test_iterator_unit_tests::check_prev(), cl_syoscb_queue_base::dump_orphans_to_file(), cl_syoscb_queue_base::dump_orphans_to_stdout(), cl_syoscb_compare_ooo::primary_loop_do(), cl_syoscb_compare_iop::primary_loop_do(), and cl_syoscb_compare_iop::secondary_loop_do().

◆ has_previous()

bit cl_syoscb_queue_iterator_base::has_previous ( )

virtual

Iterator API: Checks if there are more items in the queue in the backward direction

Returns: 1 if there are more items in the backward direction, 0 otherwise (either empty queue or at first item)

Reimplemented in cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_std, and cl_syoscb_queue_iterator_std.

Definition at line 90 of file cl_syoscb_queue_iterator_base.svh.

Referenced by cl_scb_test_iterator_unit_tests::check_flush(), and cl_scb_test_iterator_unit_tests::check_prev().

◆ last()

bit cl_syoscb_queue_iterator_base::last ( )

virtual

Iterator API: Moves the iterator to the last item in the queue.

Calling has_next at this point will always return 1'b0.

Returns: 1 if succesful, 0 if there is no first item (queue is empty)

Reimplemented in cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_std, and cl_syoscb_queue_iterator_std.

Definition at line 112 of file cl_syoscb_queue_iterator_base.svh.

Referenced by cl_scb_test_iterator_unit_tests::check_flush(), and cl_scb_test_iterator_unit_tests::check_last().

◆ next()

cl_syoscb_proxy_item_base cl_syoscb_queue_iterator_base::next ( )

virtual

Iterator API: Moves the iterator one step forward, returning the next item in the queue.

Returns: The next item if successful, raises a uvm_error if there is no next item

Reimplemented in cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_std, and cl_syoscb_queue_iterator_std.

Definition at line 62 of file cl_syoscb_queue_iterator_base.svh.

Referenced by cl_scb_test_iterator_unit_tests::check_first(), cl_scb_test_iterator_unit_tests::check_flush(), cl_scb_test_iterator_unit_tests::check_prev(), cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >::delete_item(), cl_syoscb_queue_base::dump_orphans_to_file(), cl_syoscb_queue_base::dump_orphans_to_stdout(), cl_syoscb_compare_ooo::get_count_producer(), cl_syoscb_compare_iop::get_count_producer(), cl_syoscb_compare_ooo::primary_loop_do(), cl_syoscb_compare_io::primary_loop_do(), cl_syoscb_compare_io_2hp::primary_loop_do(), cl_syoscb_compare_iop::primary_loop_do(), cl_syoscb_compare_io::secondary_loop_do(), and cl_syoscb_compare_iop::secondary_loop_do().

◆ next_index()

int cl_syoscb_queue_iterator_base::next_index ( )

virtual

Iterator API: Returns the index of the item which would be returned if next() was called

Returns: The index of the next item, or queue.size() if the iterator has reached the }.

Definition at line 76 of file cl_syoscb_queue_iterator_base.svh.

References position.

Referenced by cl_scb_test_iterator_unit_tests::check_flush(), cl_scb_test_iterator_unit_tests::check_last(), cl_scb_test_iterator_unit_tests::check_next(), cl_scb_test_iterator_unit_tests::check_prev(), cl_syoscb_queue_base::dump_orphans_to_file(), cl_syoscb_queue_base::dump_orphans_to_stdout(), cl_syoscb_compare_ooo::primary_loop_do(), cl_syoscb_compare_iop::primary_loop_do(), and cl_syoscb_compare_iop::secondary_loop_do().

◆ previous()

cl_syoscb_proxy_item_base cl_syoscb_queue_iterator_base::previous ( )

virtual

Iterator API: Moves the iterator one step backward, returning the previous item in the queue.

Returns: The previous item if successful, raises a uvm_error if there is no previous item

Reimplemented in cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >, cl_syoscb_queue_iterator_std, and cl_syoscb_queue_iterator_std.

Definition at line 82 of file cl_syoscb_queue_iterator_base.svh.

◆ previous_index()

int cl_syoscb_queue_iterator_base::previous_index ( )

virtual

Iterator API: Returns the index of the item which would be returned if previous() was called

Returns: The index of the previous item, or -1 if the iterator is pointing to the first item of the queue

Definition at line 97 of file cl_syoscb_queue_iterator_base.svh.

References position.

Referenced by cl_scb_test_iterator_unit_tests::check_first(), cl_scb_test_iterator_unit_tests::check_flush(), cl_scb_test_iterator_unit_tests::check_next(), cl_scb_test_iterator_unit_tests::check_prev(), cl_syoscb_queue_hash< pk_syoscb::MD5_HASH_DIGEST_WIDTH >::delete_item(), cl_syoscb_queue_base::dump_orphans_to_file(), cl_syoscb_queue_base::dump_orphans_to_stdout(), and cl_syoscb_compare_iop::secondary_loop_do().

◆ set_queue()

bit cl_syoscb_queue_iterator_base::set_queue ( cl_syoscb_queue_base owner )

virtual

Iterator API: Sets the queue over which this iterator is iterating.

If a queue has already been associated with this iterator, or the queue type does not match the iterator type, generates a UVM_ERROR message with id ITER_ERROR.
