Default implementation of a scoreboard wrapper. More...
Inheritance diagram for cl_syoscbs< FIN >:

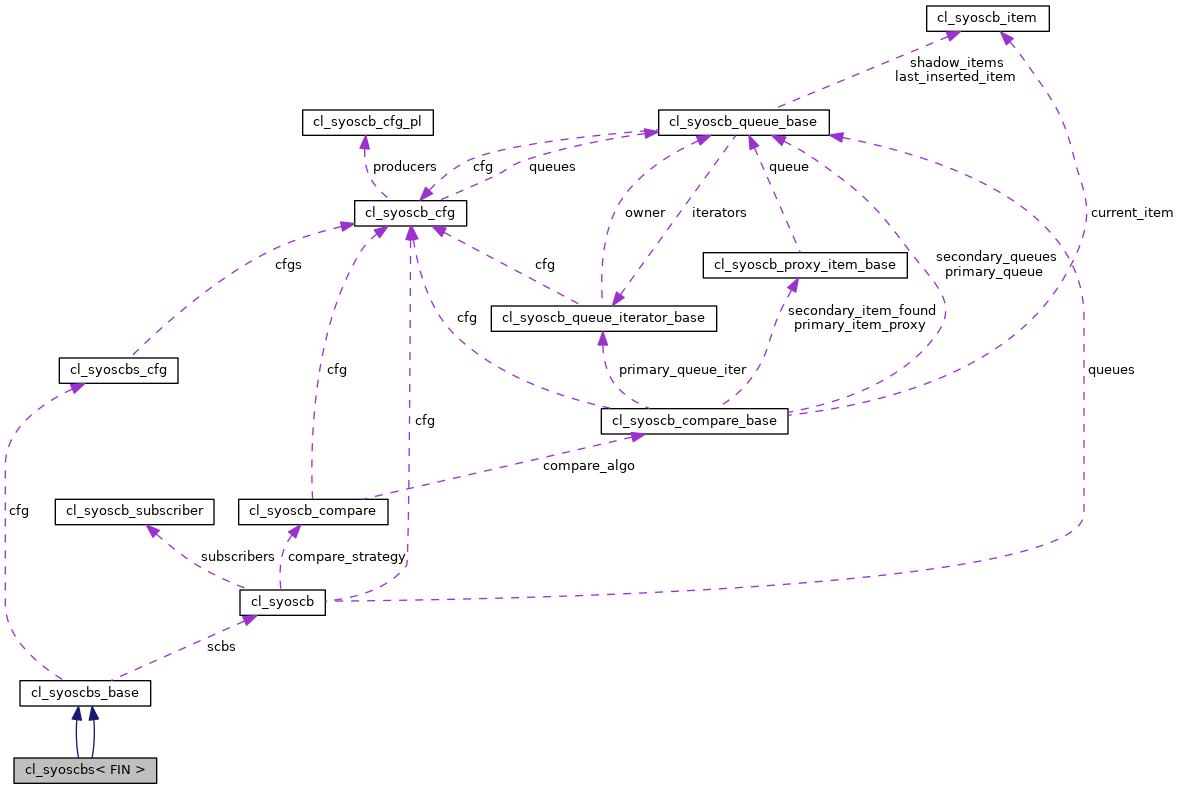

Collaboration diagram for cl_syoscbs< FIN >:
Public Types | |
| typedef pk_utils_uvm::filter_trfm< FIN, uvm_sequence_item > | tp_wrapper_filter_trfm |
| Define the filter transform type for the wrapper. | |
| typedef pk_utils_uvm::filter_trfm< FIN, uvm_sequence_item > | tp_wrapper_filter_trfm |
| Define the filter transform type for the wrapper. | |
Public Member Functions | |
| virtual void | build_phase (uvm_phase phase) |
| UVM build phase. More... | |
| virtual void | connect_phase (uvm_phase phase) |
| UVM connect phase. syoscbs_base only calls super.connect_phase. | |
| virtual cl_syoscbs::tp_wrapper_filter_trfm | get_filter_trfm (string queue_name, string producer_name, int unsigned idx) |
| Gets a handle to a filter transform This convenience wrapper gets a filter transform and typecasts it to the correct type for the user. More... | |
| virtual void | build_phase (uvm_phase phase) |
| UVM build phase. More... | |
| virtual void | connect_phase (uvm_phase phase) |
| UVM connect phase. syoscbs_base only calls super.connect_phase. | |
| virtual cl_syoscbs::tp_wrapper_filter_trfm | get_filter_trfm (string queue_name, string producer_name, int unsigned idx) |
| Gets a handle to a filter transform This convenience wrapper gets a filter transform and typecasts it to the correct type for the user. More... | |
| Public Member Functions inherited from cl_syoscbs_base | |
| virtual void | report_phase (uvm_phase phase) |
| UVM report_phase. More... | |
| virtual cl_syoscbs_cfg | get_cfg () |
| Gets the configuration object associated with this scoreboard wrapper. | |
| virtual cl_syoscb | get_scb (int unsigned idx) |
| Scoreboard Wrapper API: Get a handle to a scoreboard inside this wrapper More... | |
| virtual void | flush_queues_all () |
| Scoreboard Wrapper API: Flush all queues of all scoreboards. | |
| virtual void | flush_queues_by_index (int unsigned idxs[]={}, string queue_names[]={}) |
| Scoreboard Wrapper API: Flush the queues indicated by queue_names of the scoreboards with indexes idxs. More... | |
| virtual void | flush_queues_by_name (string scb_names[]={}, string queue_names[]={}) |
| Scoreboard Wrapper API: Flush the queues indicated by queue_names of the scoreboards with names scb_names. More... | |
| virtual void | compare_control_all (bit cc) |
| Scoreboard Wrapper API: Disable or enable the compare in all scoreboards. More... | |
| virtual void | compare_control_by_index (int unsigned idxs[]={}, bit cc) |
| Scoreboard Wrapper API: Disable or enable the compare in scoreboards with given indexes. More... | |
| virtual void | compare_control_by_name (string scb_names[]={}, bit cc) |
| Scoreboard Wrapper API: Disable or enable the compare in scoreboards with given names. More... | |
| virtual string | create_report (int unsigned offset, int unsigned first_column_width) |
| Scoreboard Wrapper API: Creates a summary report once simulation has finished. More... | |
| virtual uvm_component | get_filter_trfm_base (string queue_name, string producer_name, int unsigned idx) |
| Scoreboard Wrapper API: Gets a handle to a filter transform as a uvm_component. More... | |
| virtual void | do_print (uvm_printer printer) |
| Implementation of UVM do_print-hmethod Prints information of all wrapped scoreboards, as well as all filter transforms. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from cl_syoscbs_base | |
| virtual string | create_scb_stats (int unsigned offset, int unsigned first_column_width) |
| Returns a string containing the tables with statistics of the different scoreboards. More... | |
| virtual void | create_filters (int unsigned idx, cl_syoscb_cfg cfg) |
| Create all filter transforms for the given scoreboard. More... | |
| virtual void | connect_filters (int unsigned idx, cl_syoscb_cfg cfg) |
| Connects all filter transforms with their respective subscribers in the scoreboard. More... | |
| virtual void | create_filter (string queue_name, string producer_name, int unsigned idx) |
| Creates a filter for given scoreboard/queue name/producer combination. More... | |
| virtual void | connect_filter_and_subscriber (string queue_name, string producer_name, int unsigned idx) |
| Connects a filter's output to a scoreboard's subscriber. More... | |
| virtual string | create_total_stats (int unsigned offset, int unsigned first_column_width) |
| Returns a table with summed scoreboard statistics for all wrapped scoreboards. More... | |
| virtual string | get_scb_failed_checks () |
| Gets information on whether any of the wrapped scoreboards failed to pass error checks. More... | |
| Protected Attributes inherited from cl_syoscbs_base | |
| cl_syoscb | scbs [] |
| Array holding handles to all scoreboards. | |
| cl_syoscbs_cfg | cfg |
| Handle to scoreboard wrapper configuration object. | |
| uvm_component | fts [][string][string] |
| Array holding handles to filter transforms, used to transform inputs of one type to outputs of another type, for feeding into the wrapped scoreboards. More... | |
Detailed Description
template<typename FIN = int>
class cl_syoscbs< FIN >
Default implementation of a scoreboard wrapper.
FIN: The type of input transactions. Output transactions will be of type uvm_sequence_item
Definition at line 3 of file cl_syoscbs.svh.
Member Function Documentation
◆ build_phase() [1/2]
template<typename FIN = int>
|
virtual |
UVM build phase.
Receives a cl_syoscbs_cfg object, creates wrapped scoreboards and their configuration objects, forwards configuration objects to each wrapped scoreboard.
Reimplemented from cl_syoscbs_base.
Definition at line 68 of file cl_syoscbs.svh.
References cl_syoscbs_base::cfg, cl_syoscbs_base::create_filters(), cl_syoscbs_cfg::get_cfg(), and cl_syoscbs_base::scbs.
◆ build_phase() [2/2]
template<typename FIN = int>
|
virtual |
UVM build phase.
Receives a cl_syoscbs_cfg object, creates wrapped scoreboards and their configuration objects, forwards configuration objects to each wrapped scoreboard.
Reimplemented from cl_syoscbs_base.
◆ get_filter_trfm() [1/2]
template<typename FIN = int>
|
virtual |
Gets a handle to a filter transform This convenience wrapper gets a filter transform and typecasts it to the correct type for the user.
- Parameters
-
queue_name The name of the queue to connect the filter to producer_name The name of the producer that produced data going into this filter idx The index of the scoreboard in which this queue exists
- Returns
- A filter transform object, if all parameters are valid. If the parameters do not specify a valid filter, returns null and prints a UVM_INFO/DEBUG message
Definition at line 47 of file cl_syoscbs.svh.
References cl_syoscbs_base::get_filter_trfm_base().
◆ get_filter_trfm() [2/2]
template<typename FIN = int>
|
virtual |
Gets a handle to a filter transform This convenience wrapper gets a filter transform and typecasts it to the correct type for the user.
- Parameters
-
queue_name The name of the queue to connect the filter to producer_name The name of the producer that produced data going into this filter idx The index of the scoreboard in which this queue exists
- Returns
- A filter transform object, if all parameters are valid. If the parameters do not specify a valid filter, returns null and prints a UVM_INFO/DEBUG message
Definition at line 48 of file pk_syoscb.sv.
The documentation for this class was generated from the following files:
