Base class for a wrapper around multiple SyoSil Scoreboards. More...

Inheritance diagram for cl_syoscbs_base:

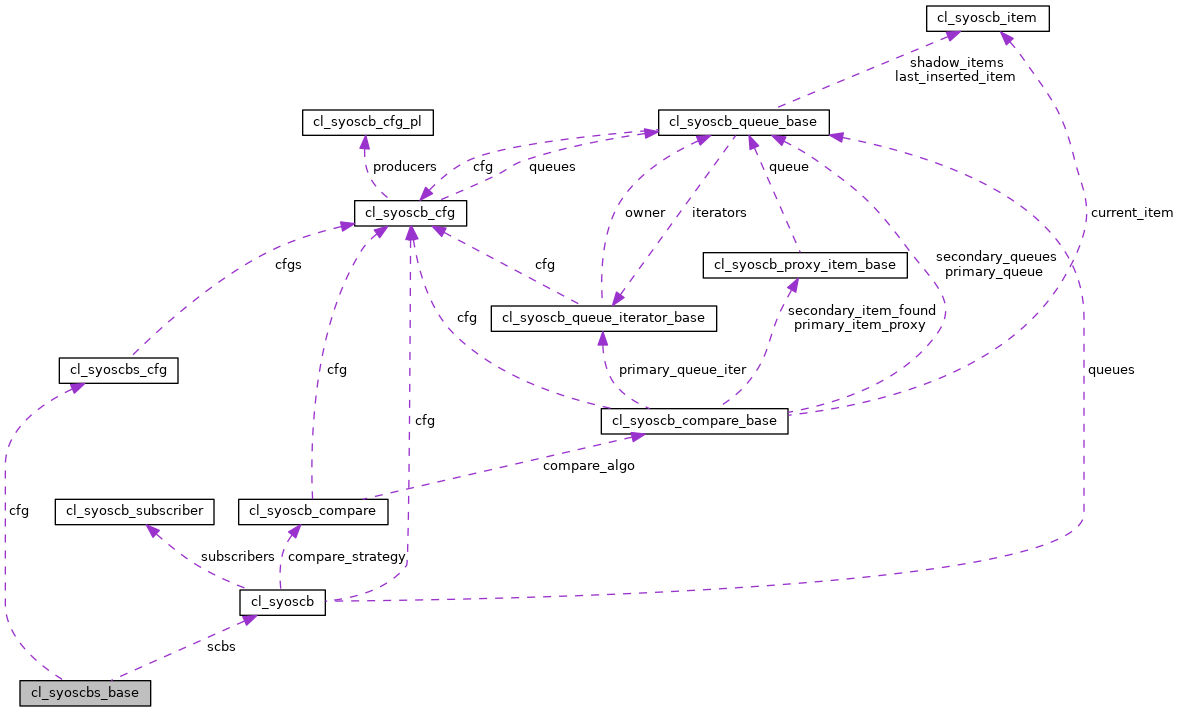

Collaboration diagram for cl_syoscbs_base:

Public Member Functions
virtual void	build_phase (uvm_phase phase)
	UVM build phase. More...

virtual void	connect_phase (uvm_phase phase)
	UVM connect phase. syoscbs_base only calls super.connect_phase.

virtual void	report_phase (uvm_phase phase)
	UVM report_phase. More...

virtual cl_syoscbs_cfg	get_cfg ()
	Gets the configuration object associated with this scoreboard wrapper.

virtual cl_syoscb	get_scb (int unsigned idx)
	Scoreboard Wrapper API: Get a handle to a scoreboard inside this wrapper More...

virtual void	flush_queues_all ()
	Scoreboard Wrapper API: Flush all queues of all scoreboards.

virtual void	flush_queues_by_index (int unsigned idxs[]={}, string queue_names[]={})
	Scoreboard Wrapper API: Flush the queues indicated by queue_names of the scoreboards with indexes idxs. More...

virtual void	flush_queues_by_name (string scb_names[]={}, string queue_names[]={})
	Scoreboard Wrapper API: Flush the queues indicated by queue_names of the scoreboards with names scb_names. More...

virtual void	compare_control_all (bit cc)
	Scoreboard Wrapper API: Disable or enable the compare in all scoreboards. More...

virtual void	compare_control_by_index (int unsigned idxs[]={}, bit cc)
	Scoreboard Wrapper API: Disable or enable the compare in scoreboards with given indexes. More...

virtual void	compare_control_by_name (string scb_names[]={}, bit cc)
	Scoreboard Wrapper API: Disable or enable the compare in scoreboards with given names. More...

virtual string	create_report (int unsigned offset, int unsigned first_column_width)
	Scoreboard Wrapper API: Creates a summary report once simulation has finished. More...

virtual uvm_component	get_filter_trfm_base (string queue_name, string producer_name, int unsigned idx)
	Scoreboard Wrapper API: Gets a handle to a filter transform as a uvm_component. More...

virtual void	do_print (uvm_printer printer)
	Implementation of UVM do_print-hmethod Prints information of all wrapped scoreboards, as well as all filter transforms. More...

Protected Member Functions
virtual string	create_scb_stats (int unsigned offset, int unsigned first_column_width)
	Returns a string containing the tables with statistics of the different scoreboards. More...

virtual void	create_filters (int unsigned idx, cl_syoscb_cfg cfg)
	Create all filter transforms for the given scoreboard. More...

virtual void	connect_filters (int unsigned idx, cl_syoscb_cfg cfg)
	Connects all filter transforms with their respective subscribers in the scoreboard. More...

virtual void	create_filter (string queue_name, string producer_name, int unsigned idx)
	Creates a filter for given scoreboard/queue name/producer combination. More...

virtual void	connect_filter_and_subscriber (string queue_name, string producer_name, int unsigned idx)
	Connects a filter's output to a scoreboard's subscriber. More...

virtual string	create_total_stats (int unsigned offset, int unsigned first_column_width)
	Returns a table with summed scoreboard statistics for all wrapped scoreboards. More...

virtual string	get_scb_failed_checks ()
	Gets information on whether any of the wrapped scoreboards failed to pass error checks. More...

Protected Attributes
cl_syoscb	scbs []
	Array holding handles to all scoreboards.

cl_syoscbs_cfg	cfg
	Handle to scoreboard wrapper configuration object.

uvm_component	fts [][string][string]
	Array holding handles to filter transforms, used to transform inputs of one type to outputs of another type, for feeding into the wrapped scoreboards. More...

Detailed Description

Base class for a wrapper around multiple SyoSil Scoreboards.

An implementation is found in cl_syoscbs_base

Definition at line 3 of file cl_syoscbs_base.svh.

Member Function Documentation

◆ build_phase()

void cl_syoscbs_base::build_phase ( uvm_phase phase )

virtual

UVM build phase.

Receives a cl_syoscbs_cfg object, creates wrapped scoreboards and their configuration objects, forwards configuration objects to each wrapped scoreboard.

Reimplemented in cl_syoscbs< FIN >, and cl_syoscbs< FIN >.

Definition at line 87 of file cl_syoscbs_base.svh.

References cl_syoscbs_cfg::get_cfg(), cl_syoscbs_cfg::get_no_scbs(), cl_syoscbs_cfg::get_print_cfg(), cl_syoscb_cfg::get_scb_name(), cl_syoscbs_cfg::get_scbs_name(), and cl_syoscbs_cfg::set_scbs_name().

◆ compare_control_all()

void cl_syoscbs_base::compare_control_all ( bit cc )

virtual

Scoreboard Wrapper API: Disable or enable the compare in all scoreboards.

Parameters

cc	Compare control bit. If 0b1, enables compare in all scoreboards. If 10b0, disables compare

Definition at line 288 of file cl_syoscbs_base.svh.

References compare_control_by_index().

◆ compare_control_by_index()

void cl_syoscbs_base::compare_control_by_index	(	int unsigned	idxs[] = `{}`,
		bit	cc
	)

virtual

Scoreboard Wrapper API: Disable or enable the compare in scoreboards with given indexes.

If no indexes are specified, all scoreboards are affected.

Parameters

idxs	The indexes of the scoreboards to enable/disable compare control for
cc	Compare control bit. If 0b1, enables compare in all scoreboards. If 10b0, disables compare

Definition at line 296 of file cl_syoscbs_base.svh.

Referenced by compare_control_all().

◆ compare_control_by_name()

void cl_syoscbs_base::compare_control_by_name	(	string	scb_names[] = `{}`,
		bit	cc
	)

virtual

Scoreboard Wrapper API: Disable or enable the compare in scoreboards with given names.

If no names are specified, all scoreboards are affected.

Parameters

scb_names	The names of the scoreboards to enable/disable compare control for
cc	Compare control bit. If 0b1, enables compare in all scoreboards. If 10b0, disables compare

Definition at line 312 of file cl_syoscbs_base.svh.

◆ connect_filter_and_subscriber()

void cl_syoscbs_base::connect_filter_and_subscriber	(	string	queue_name,
		string	producer_name,
		int unsigned	idx
	)

protectedvirtual

Connects a filter's output to a scoreboard's subscriber.

Parameters

queue_name	The name of the queue to connect the filter to
producer_name	The name of the producer that produced data going into this filter
fts_idx	The index of the scoreboard in which this queue exists

Note: Abstract method, will throw UVM_FATAL if called. Must override in a child class

Definition at line 479 of file cl_syoscbs_base.svh.

Referenced by connect_filters().

◆ connect_filters()

void cl_syoscbs_base::connect_filters	(	int unsigned	idx,
		cl_syoscb_cfg	cfg
	)

protectedvirtual

Connects all filter transforms with their respective subscribers in the scoreboard.

Should be called in the UVM connect phase

Parameters

idx	Index of the scoreboard for which all filters should be connected
cfg	The configuration object for that scoreboard

Definition at line 451 of file cl_syoscbs_base.svh.

References cfg, connect_filter_and_subscriber(), and cl_syoscb_cfg_pl::list.

Referenced by cl_syoscbs< FIN >::connect_phase().

◆ create_filter()

void cl_syoscbs_base::create_filter	(	string	queue_name,
		string	producer_name,
		int unsigned	idx
	)

protectedvirtual

Creates a filter for given scoreboard/queue name/producer combination.

Parameters

queue_name	The name of the queue to connect the filter to
producer_name	The name of the producer that produced data going into this filter
idx	The index of the scoreboard in which this queue exists

Note: Abstract method. Must override in a child class to create filters of the correct type

Definition at line 468 of file cl_syoscbs_base.svh.

Referenced by create_filters().

◆ create_filters()

void cl_syoscbs_base::create_filters	(	int unsigned	idx,
		cl_syoscb_cfg	cfg
	)

protectedvirtual

Create all filter transforms for the given scoreboard.

Should be called in the UVM build phase

Parameters

idx	Index of the scoreboard to create filters for
cfg	The configuration object for that scoreboard

Definition at line 434 of file cl_syoscbs_base.svh.

References cfg, create_filter(), and cl_syoscb_cfg_pl::list.

Referenced by cl_syoscbs< FIN >::build_phase().

◆ create_report()

string cl_syoscbs_base::create_report	(	int unsigned	offset,
		int unsigned	first_column_width
	)

virtual

Scoreboard Wrapper API: Creates a summary report once simulation has finished.

The report contains insert/match/flush/orphan statistics for the wrapped scoreboards. If the cl_syoscb_cfg::gen_enable_scb_stats configuration knob is active then the report of the different queues in each scoreboard is also included. At the end of the report is a table with the statistics of all scoreboards.

Parameters

offset	Horizontal offset at which text should start
first_column_width	The width of the first column in the output table

Returns: A string containing the entire report, ready to print

Definition at line 347 of file cl_syoscbs_base.svh.

References create_scb_stats(), create_total_stats(), and cl_syoscb_string_library::scb_separator_str().

Referenced by report_phase().

◆ create_scb_stats()

string cl_syoscbs_base::create_scb_stats	(	int unsigned	offset,
		int unsigned	first_column_width
	)

protectedvirtual

Returns a string containing the tables with statistics of the different scoreboards.

If the cl_syoscbs_cfg::enable_scb_stats configuration knob is active for a given scoreboard, the report of the individual queues of that scoreboard is also included.

Parameters

offset	Horizontal offset at which text should start. Depends on the level of nested calls (see cl_syoscbs_base::report_phase implementation)
first_column_width	The width of the first column in the output table

Returns: A string containing the table

Definition at line 396 of file cl_syoscbs_base.svh.

References cl_syoscb::create_report_contents(), cl_syoscb::create_total_stats(), cl_syoscbs_cfg::get_enable_scb_stats(), and cl_syoscb_string_library::scb_separator_str().

Referenced by create_report().

◆ create_total_stats()

string cl_syoscbs_base::create_total_stats	(	int unsigned	offset,
		int unsigned	first_column_width
	)

protectedvirtual

Returns a table with summed scoreboard statistics for all wrapped scoreboards.

Parameters

offset	Horizontal offset at which text should start
first_column_width	The width of the first column in the output table

Returns: A string containing the table

Definition at line 363 of file cl_syoscbs_base.svh.

References cl_syoscb::get_total_cnt_add_items(), cl_syoscb::get_total_cnt_flushed_items(), cl_syoscb::get_total_queue_size(), and cl_syoscb_string_library::pad_str().

Referenced by create_report().

◆ do_print()

void cl_syoscbs_base::do_print ( uvm_printer printer )

virtual

Implementation of UVM do_print-hmethod Prints information of all wrapped scoreboards, as well as all filter transforms.

Parameters

printer The UVM printer to use

Definition at line 489 of file cl_syoscbs_base.svh.

References fts, and scbs.

◆ flush_queues_by_index()

void cl_syoscbs_base::flush_queues_by_index	(	int unsigned	idxs[] = `{}`,
		string	queue_names[] = `{}`
	)

virtual

Scoreboard Wrapper API: Flush the queues indicated by queue_names of the scoreboards with indexes idxs.

If no indexes are specified, all scoreboards will be affected by the flush. If no queue names are specified all queues are flushed.

Parameters

idxs	indexes of the scoreboards to flush
queue_names	Names of the queues under those scoreboards to flush

Definition at line 225 of file cl_syoscbs_base.svh.

Referenced by flush_queues_all().

◆ flush_queues_by_name()

void cl_syoscbs_base::flush_queues_by_name	(	string	scb_names[] = `{}`,
		string	queue_names[] = `{}`
	)

virtual

Scoreboard Wrapper API: Flush the queues indicated by queue_names of the scoreboards with names scb_names.

If no scoreboard names are specified all the scoreboards will be affected by the flush. If no queue names are specified all queues are flushed.

Parameters

scb_names	Names of the scoreboards to flush
queue_names	Names of the queues under those scoreboards to flush

Definition at line 259 of file cl_syoscbs_base.svh.

◆ get_filter_trfm_base()

uvm_component cl_syoscbs_base::get_filter_trfm_base	(	string	queue_name,
		string	producer_name,
		int unsigned	idx
	)

virtual

Scoreboard Wrapper API: Gets a handle to a filter transform as a uvm_component.

The end user must typecast this uvm_component to the correct type, based on the kind of filter transforms that is implemented

Parameters

queue_name	The name of the queue to connect the filter to
producer_name	The name of the producer that produced data going into this filter
fts_idx	The index of the scoreboard in which this queue exists

Returns: A uvm_component which represents a filter, if all parameters are valid. If the parameters do not specify a valid filter, returns null and prints a UVM_INFO/DEBUG message

Definition at line 194 of file cl_syoscbs_base.svh.

Referenced by cl_syoscbs< FIN >::get_filter_trfm().

◆ get_scb()

cl_syoscb cl_syoscbs_base::get_scb ( int unsigned idx )

virtual

Scoreboard Wrapper API: Get a handle to a scoreboard inside this wrapper

Parameters

idx	The index of that scoreboard

Returns: A handle to scoreboard [idx]. If idx >= number of scoreboards, throws a uvm_fatal error

Definition at line 175 of file cl_syoscbs_base.svh.

◆ get_scb_failed_checks()

string cl_syoscbs_base::get_scb_failed_checks ( )

protectedvirtual

Gets information on whether any of the wrapped scoreboards failed to pass error checks.

These error checks include orphan checking and no-insertion checks.

Returns: A string combining the error checks of all queues.

Definition at line 417 of file cl_syoscbs_base.svh.

References cl_syoscb::get_failed_checks().

Referenced by report_phase().

◆ report_phase()

void cl_syoscbs_base::report_phase ( uvm_phase phase )

virtual

UVM report_phase.

Prints the status of all scoreboard instances.

Definition at line 128 of file cl_syoscbs_base.svh.

References create_report(), cl_syoscbs_cfg::get_disable_report(), cl_syoscbs_cfg::get_max_length_producer(), cl_syoscbs_cfg::get_max_length_queue_name(), cl_syoscbs_cfg::get_max_length_scb_name(), get_scb_failed_checks(), cl_syoscb_string_library::scb_header_str(), and cl_syoscb_string_library::scb_separator_str().

Member Data Documentation

◆ fts

uvm_component cl_syoscbs_base::fts

protected

Array holding handles to filter transforms, used to transform inputs of one type to outputs of another type, for feeding into the wrapped scoreboards.

Declared as type uvm_component for flexibility. See example of implementation in cl_syoscbs_base. AA is indexed by [scb_idx][queue_name][producer_name]

Definition at line 18 of file cl_syoscbs_base.svh.

Referenced by cl_syoscbs< FIN >::connect_phase(), and do_print().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ build_phase()

◆ compare_control_all()

◆ compare_control_by_index()

◆ compare_control_by_name()

◆ connect_filter_and_subscriber()

◆ connect_filters()

◆ create_filter()

◆ create_filters()

◆ create_report()

◆ create_scb_stats()

◆ create_total_stats()

◆ do_print()

◆ flush_queues_by_index()

◆ flush_queues_by_name()

◆ get_filter_trfm_base()

◆ get_scb()

◆ get_scb_failed_checks()

◆ report_phase()

Member Data Documentation

◆ fts
