Queue iterator class for iterating over std queues. More...
Inheritance diagram for cl_syoscb_queue_iterator_std:

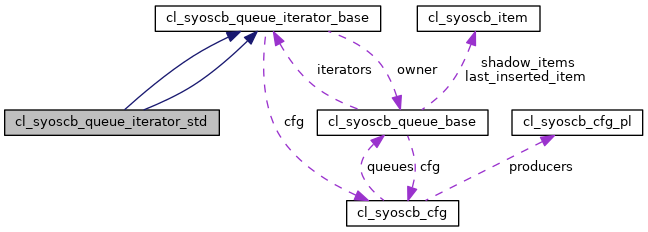

Collaboration diagram for cl_syoscb_queue_iterator_std:
Public Member Functions | |
| virtual cl_syoscb_proxy_item_base | next () |
| Iterator API: See cl_syoscb_queue_iterator_base::next for details | |
| virtual bit | has_next () |
| Iterator API: See cl_syoscb_queue_iterator_base::has_next for details | |
| virtual cl_syoscb_proxy_item_base | previous () |
| Iterator API: See cl_syoscb_queue_iterator_base::previous for details | |
| virtual bit | has_previous () |
| Iterator API: See cl_syoscb_queue_iterator_base::has_previous for details | |
| virtual bit | first () |
| Iterator API: See cl_syoscb_queue_iterator_base::first for details | |
| virtual bit | last () |
| Iterator API: See cl_syoscb_queue_iterator_base::last for details | |
| virtual bit | set_queue (cl_syoscb_queue_base owner) |
| Iterator API: See cl_syoscb_queue_iterator_base::set_queue for details | |
| virtual cl_syoscb_proxy_item_base | next () |
| Iterator API: Moves the iterator one step forward, returning the next item in the queue. More... | |
| virtual bit | has_next () |
| Iterator API: Checks if there are more items in the queue in the forward direction More... | |
| virtual cl_syoscb_proxy_item_base | previous () |
| Iterator API: Moves the iterator one step backward, returning the previous item in the queue. More... | |
| virtual bit | has_previous () |
| Iterator API: Checks if there are more items in the queue in the backward direction More... | |
| virtual bit | first () |
| Iterator API: Moves the iterator to the first item in the queue. More... | |
| virtual bit | last () |
| Iterator API: Moves the iterator to the last item in the queue. More... | |
| virtual bit | set_queue (cl_syoscb_queue_base owner) |
| Iterator API: Sets the queue over which this iterator is iterating. More... | |
| Public Member Functions inherited from cl_syoscb_queue_iterator_base | |
| virtual int | next_index () |
| Iterator API: Returns the index of the item which would be returned if next() was called More... | |
| virtual int | previous_index () |
| Iterator API: Returns the index of the item which would be returned if previous() was called More... | |
Protected Member Functions | |
| virtual cl_syoscb_proxy_item_base | get_item_proxy () |
| Iterator API: See cl_syoscb_queue_iterator_base::get_item_proxy for details | |
| virtual cl_syoscb_proxy_item_base | get_item_proxy () |
| Iterator API: Internal API: Returns a proxy item that can be used to access the element that was just moved past by calling next or previous. More... | |
| Protected Member Functions inherited from cl_syoscb_queue_iterator_base | |
| virtual cl_syoscb_queue_base | get_queue () |
| Iterator API: Internal API: Returns the queue over which this iterator is iterating. More... | |
Additional Inherited Members | |
| Protected Attributes inherited from cl_syoscb_queue_iterator_base | |
| cl_syoscb_queue_base | owner |
| The owner of this iterator. | |
| int unsigned | position = 0 |
| Current position in the queue. | |
| cl_syoscb_cfg | cfg |
| Local handle to the SCB cfg. | |
Detailed Description
Queue iterator class for iterating over std queues.
Definition at line 2 of file cl_syoscb_queue_iterator_std.svh.
Member Function Documentation
◆ first()
|
virtual |
Iterator API: Moves the iterator to the first item in the queue.
Calling has_previous at this point will always return 1'b0
- Returns
- 1 if successful, 0 if the queue is empty
Reimplemented from cl_syoscb_queue_iterator_base.
◆ get_item_proxy()
|
protectedvirtual |
Iterator API: Internal API: Returns a proxy item that can be used to access the element that was just moved past by calling next or previous.
- Returns
- A proxy item for the element that was moved past.
Reimplemented from cl_syoscb_queue_iterator_base.
◆ has_next()
|
virtual |
Iterator API: Checks if there are more items in the queue in the forward direction
- Returns
- 1 if there are more items in the forward direction, 0 otherwise (either empty queue or past last item)
Reimplemented from cl_syoscb_queue_iterator_base.
◆ has_previous()
|
virtual |
Iterator API: Checks if there are more items in the queue in the backward direction
- Returns
- 1 if there are more items in the backward direction, 0 otherwise (either empty queue or at first item)
Reimplemented from cl_syoscb_queue_iterator_base.
◆ last()
|
virtual |
Iterator API: Moves the iterator to the last item in the queue.
Calling has_next at this point will always return 1'b0.
- Returns
- 1 if succesful, 0 if there is no first item (queue is empty)
Reimplemented from cl_syoscb_queue_iterator_base.
◆ next()
|
virtual |
Iterator API: Moves the iterator one step forward, returning the next item in the queue.
- Returns
- The next item if successful, raises a uvm_error if there is no next item
Reimplemented from cl_syoscb_queue_iterator_base.
◆ previous()
|
virtual |
Iterator API: Moves the iterator one step backward, returning the previous item in the queue.
- Returns
- The previous item if successful, raises a uvm_error if there is no previous item
Reimplemented from cl_syoscb_queue_iterator_base.
◆ set_queue()
|
virtual |
Iterator API: Sets the queue over which this iterator is iterating.
If a queue has already been associated with this iterator, or the queue type does not match the iterator type, generates a UVM_ERROR message with id ITER_ERROR.
- Returns
- 1 if successful, raises a UVM_ERROR otherwise (a queue is already associated with this iterator, or wrong queue type)
Reimplemented from cl_syoscb_queue_iterator_base.
The documentation for this class was generated from the following files:
